Datasheets

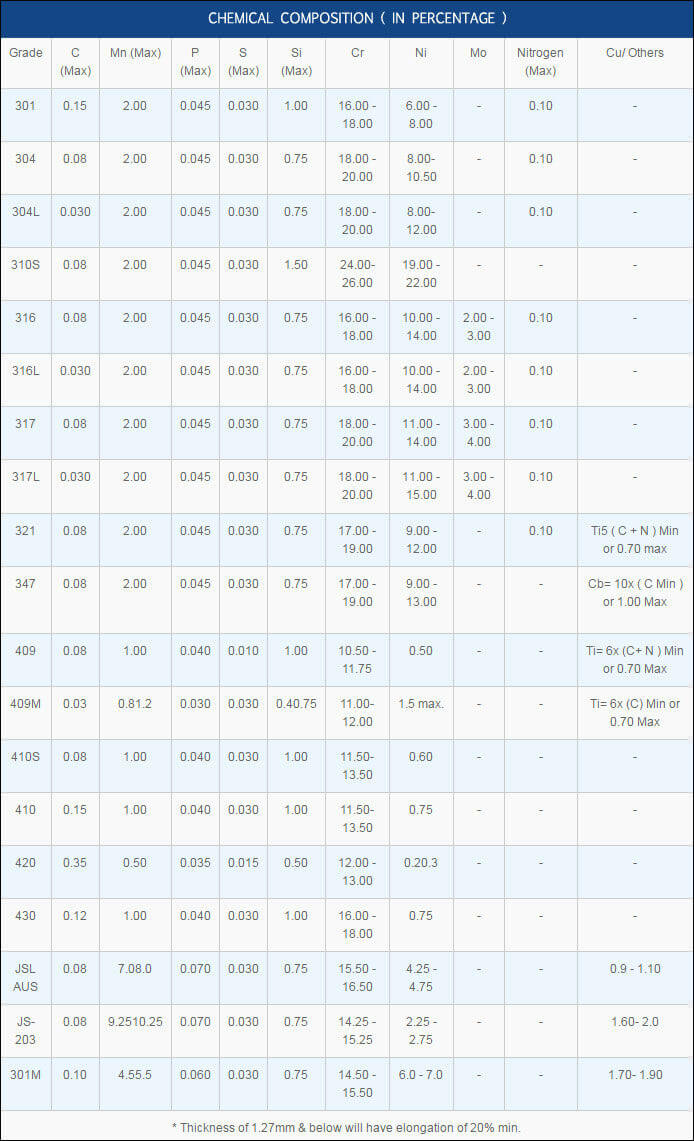

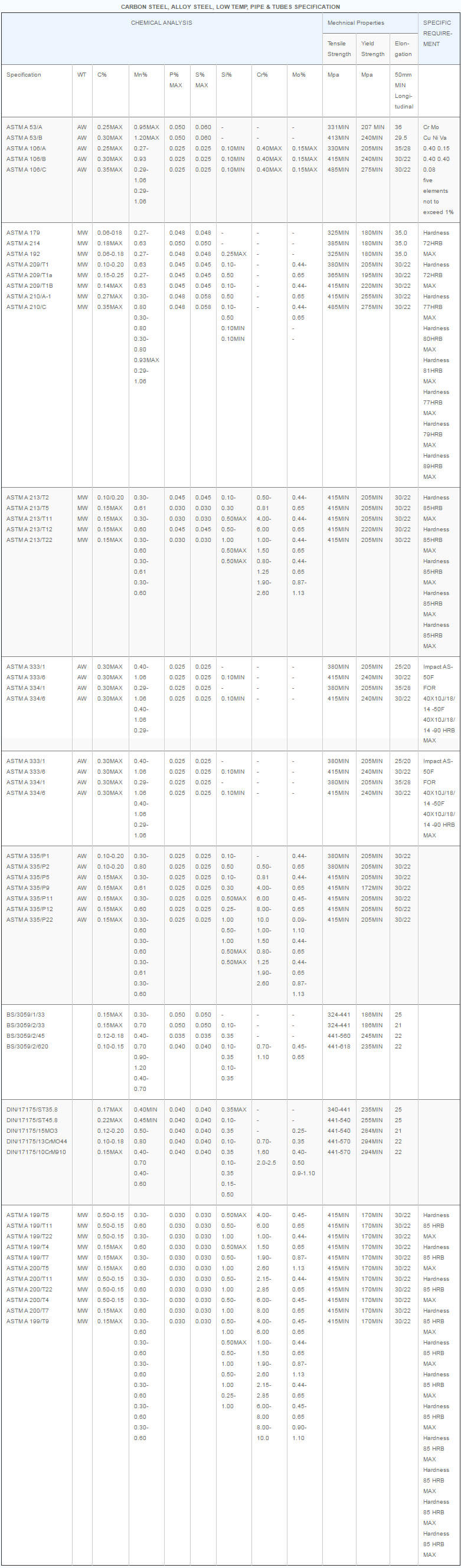

CARBON STEEL, ALLOY STEEL, LOW TEMP, PIPE & TUBES SPECIFICATION

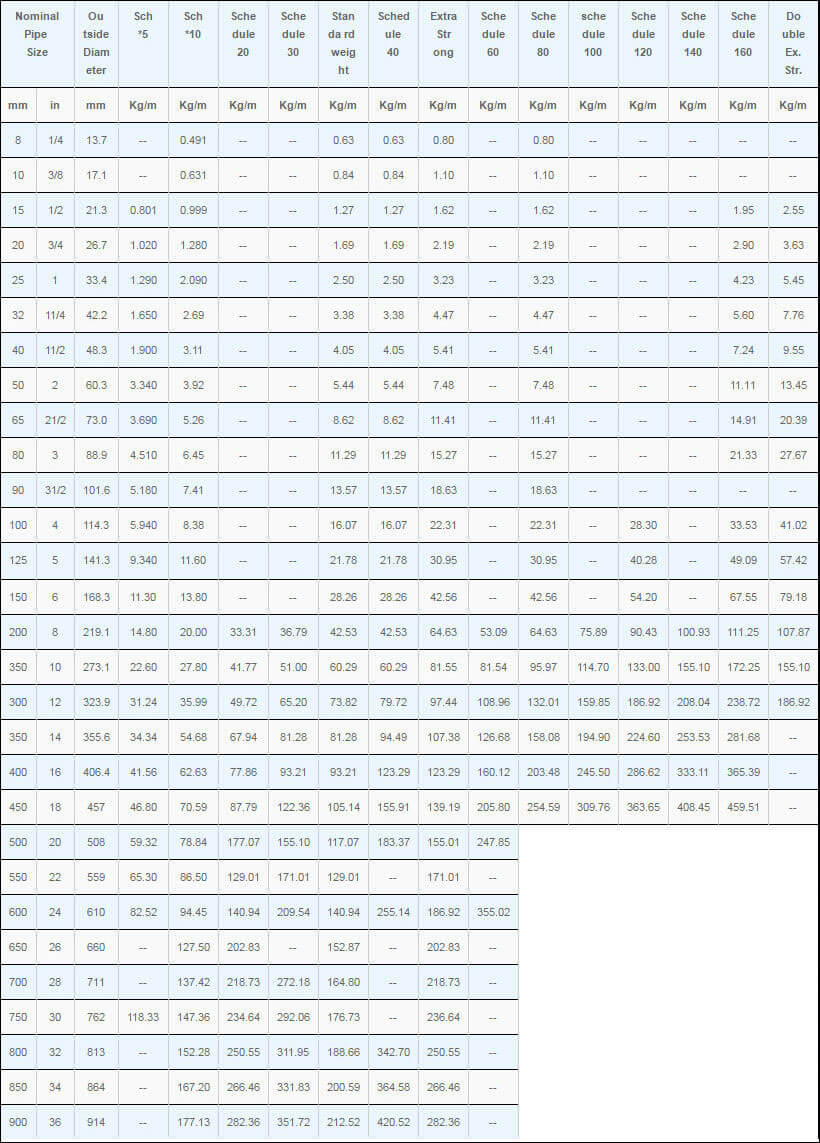

Weight & Dimensions of Schedule Pipe


Line Pipe Weight


CARBON STEEL FORGED FITTING

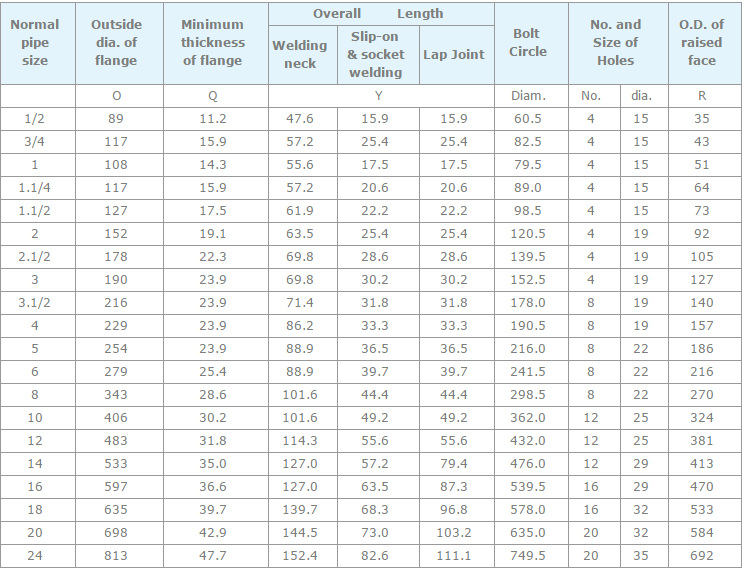

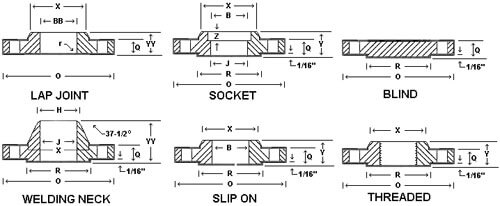

  • 150 LB. FLANGES

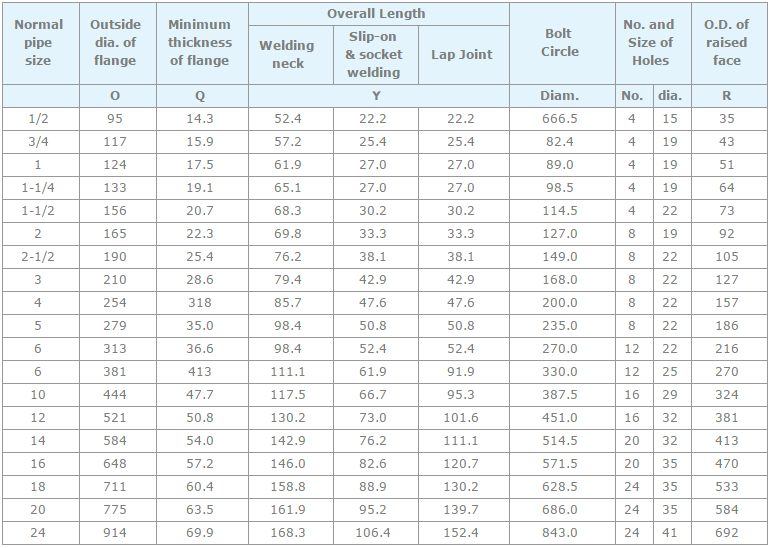

  • 300 LB. FLANGES
    CARBON STEEL FORGED FITTING

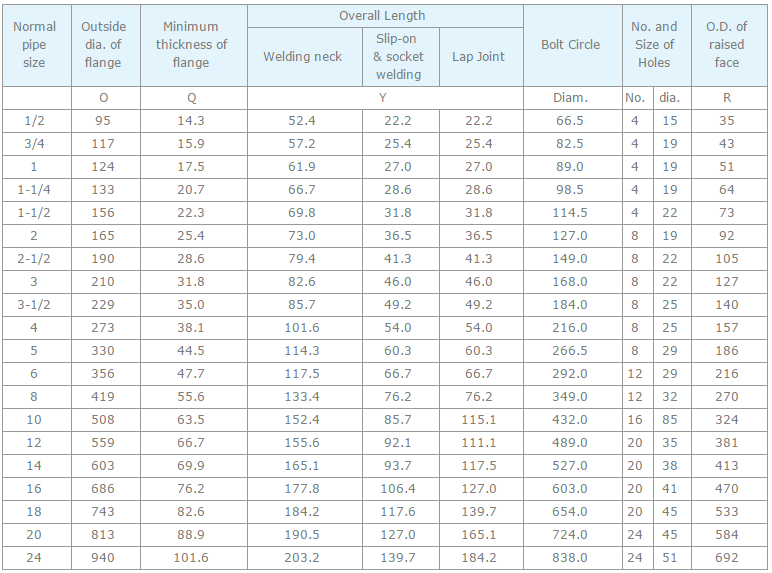

  • 600 LB. FLANGES
    CARBON STEEL FORGED FITTING

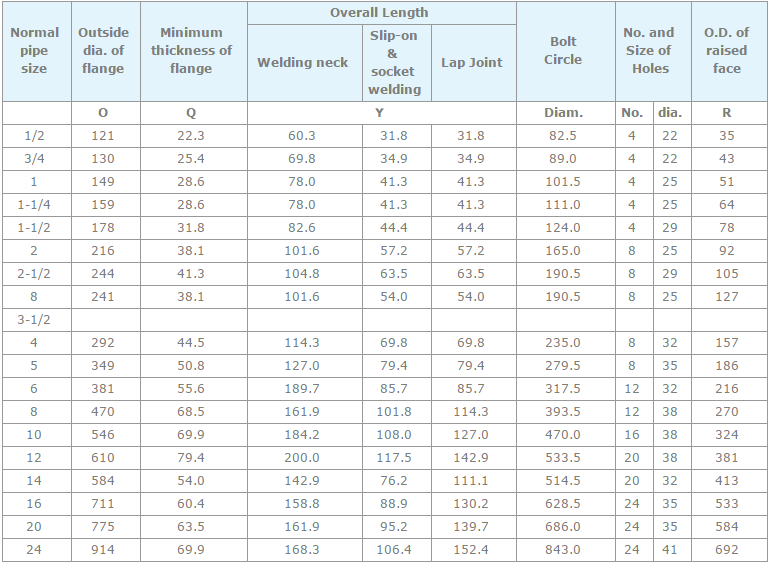

  • 900 LB. FLANGES
    CARBON STEEL FORGED FITTING

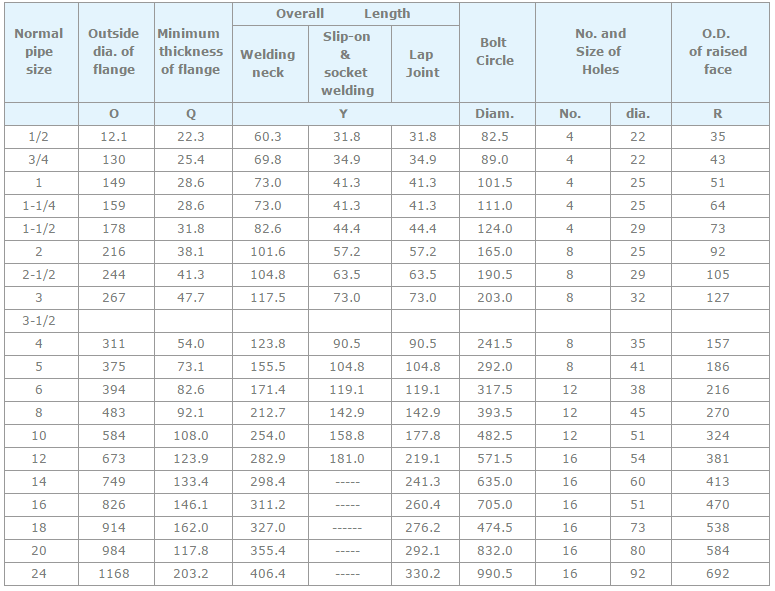

  • 1500 LB. FLANGES
    CARBON STEEL FORGED FITTING

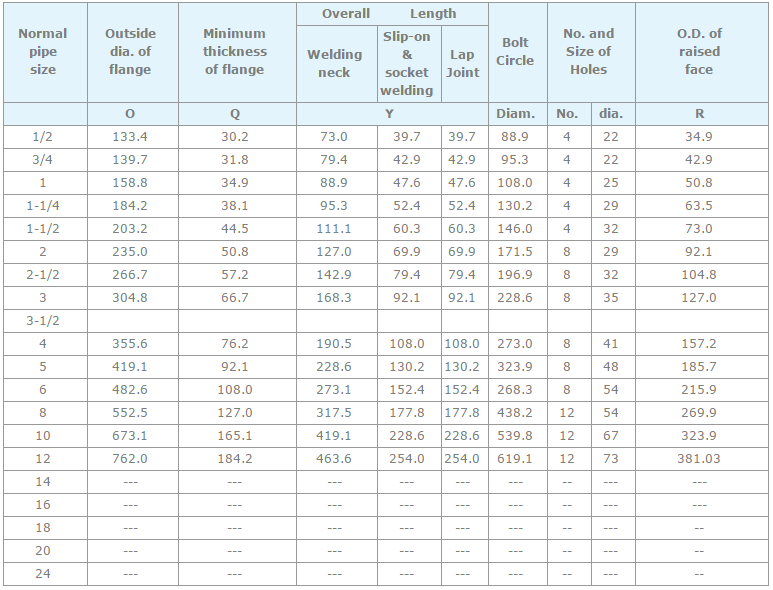

  • 2500 LB. FLANGES
    CARBON STEEL FORGED FITTING

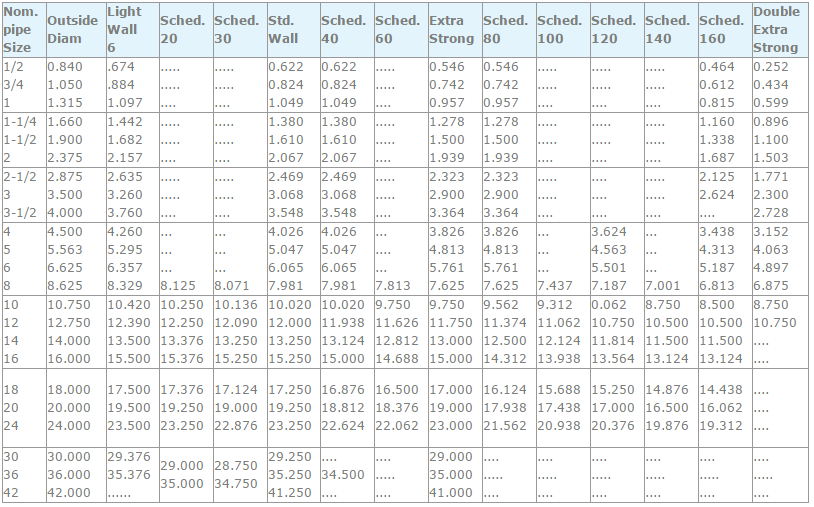

  • WELDING NECK FLANGE BORES
    CARBON STEEL FORGED FITTING

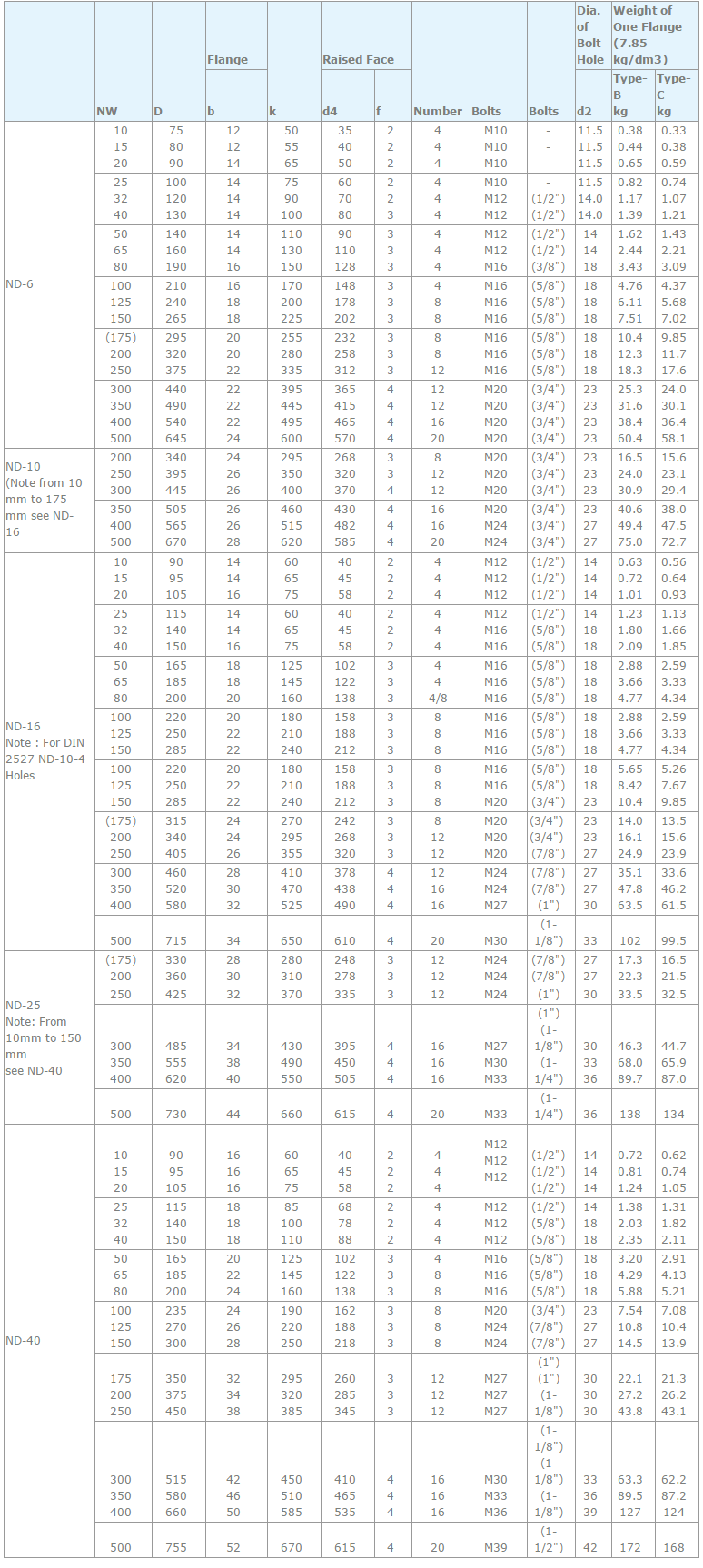

  • DIN 2527
    CARBON STEEL FORGED FITTING

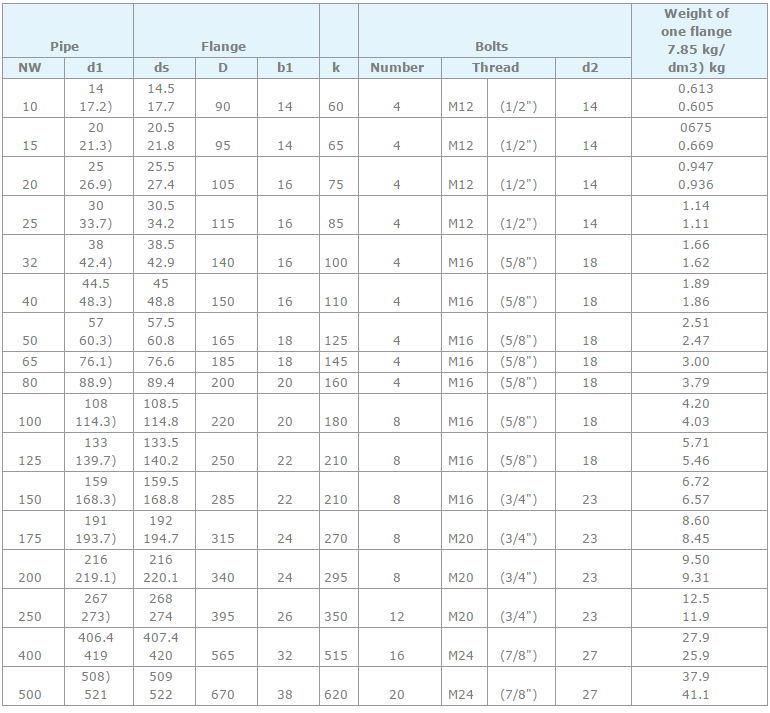

  • DIN 2576 FLANGES
    CARBON STEEL FORGED FITTING

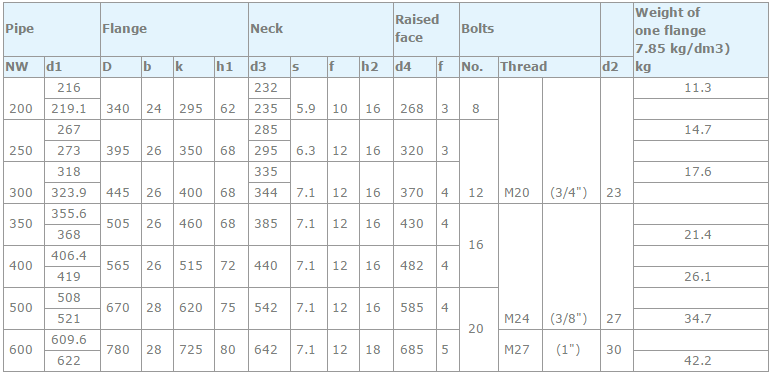

  • DIN 2632 WELDING NECK FLANGES FOR NOMINAL PRESSURE 10

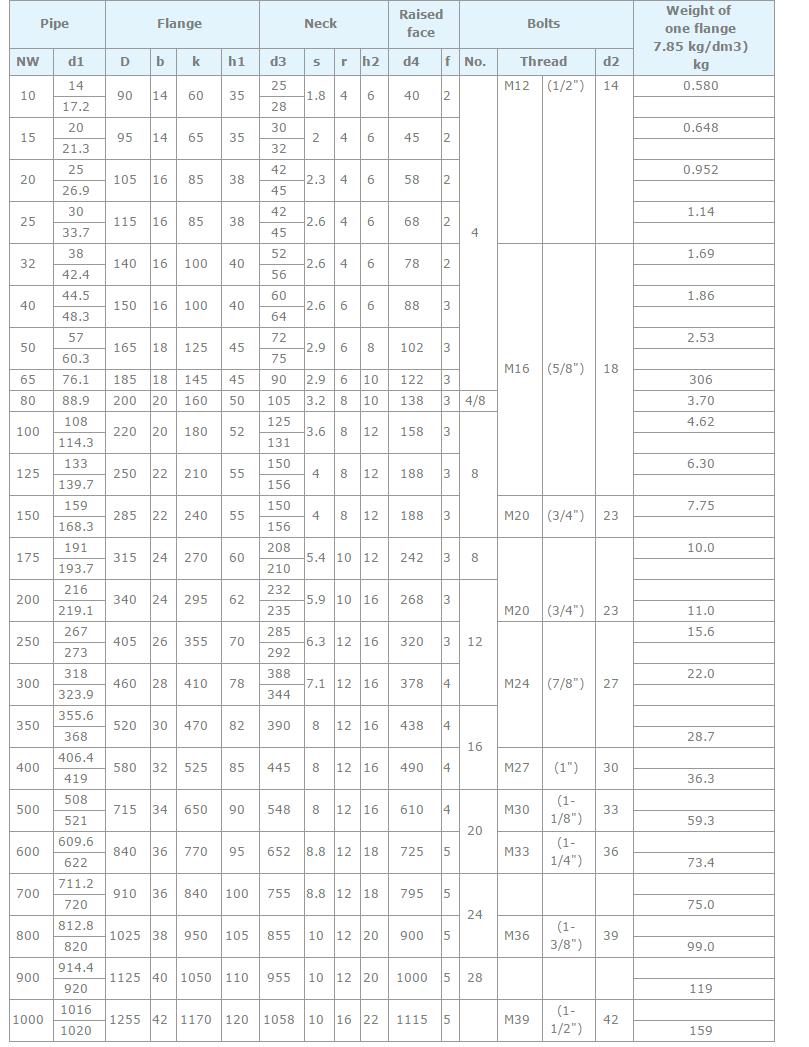

  • DIN 2633 WELDING NECK FLANGES NOMINAL PRESSURE 16
    CARBON STEEL FORGED FITTING

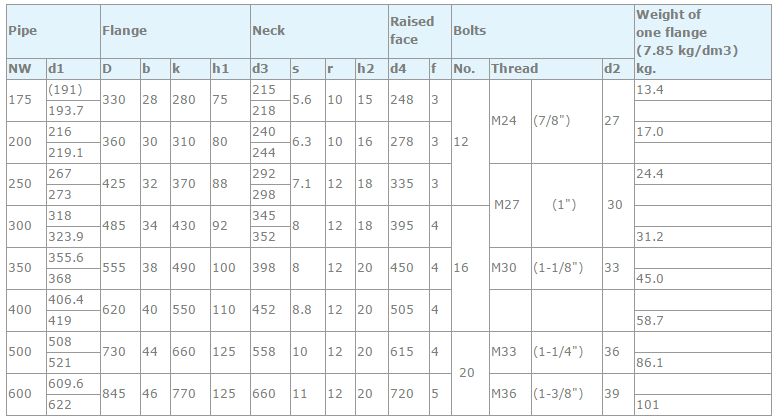

  • DIN 2634 WELDING NECK FLANGE NOMINAL PRESSURE 25

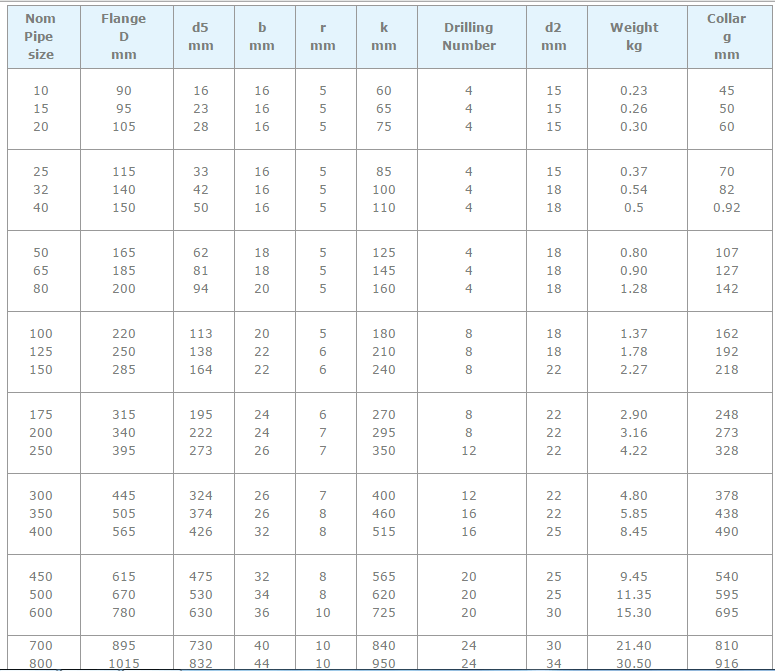

  • DIN 2642, DIN Connections LOOSE FLANGE FOR FLANGE COLLAR PN 10
    CARBON STEEL FORGED FITTING

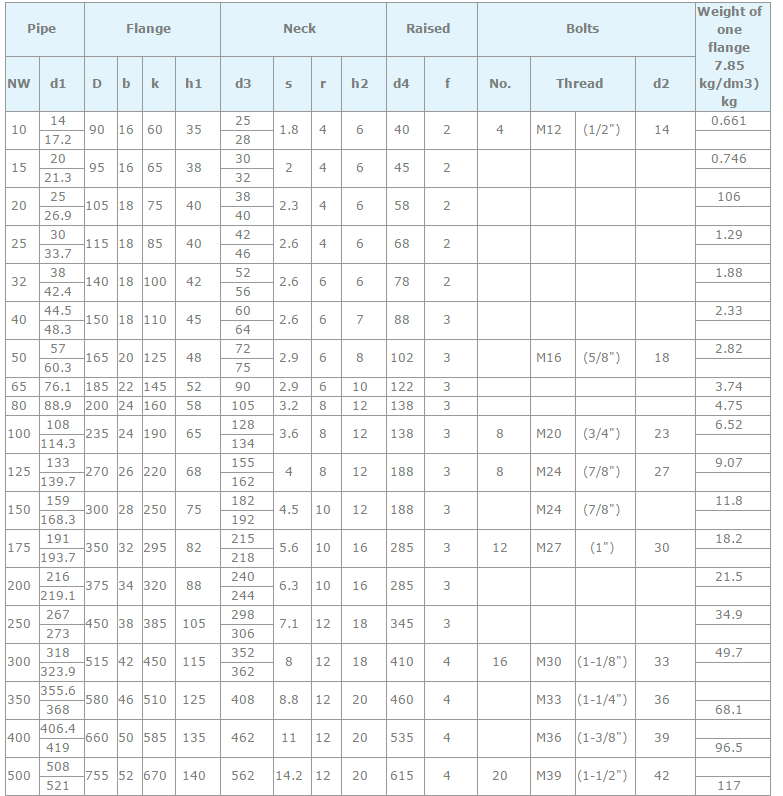

  • DIN 2635 WELDING NECK FLANGES NOMINAL PRESSURE 40
    CARBON STEEL FORGED FITTING

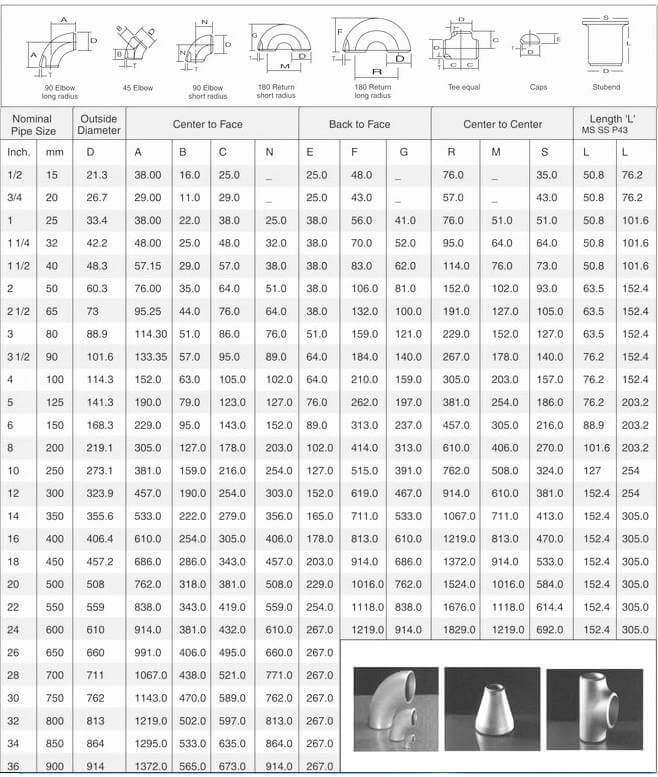

  • BUTTWELD FITTINGS DIMENSIONAL STANDARD ANSI B-16.9, B-16.28, MS SS P43

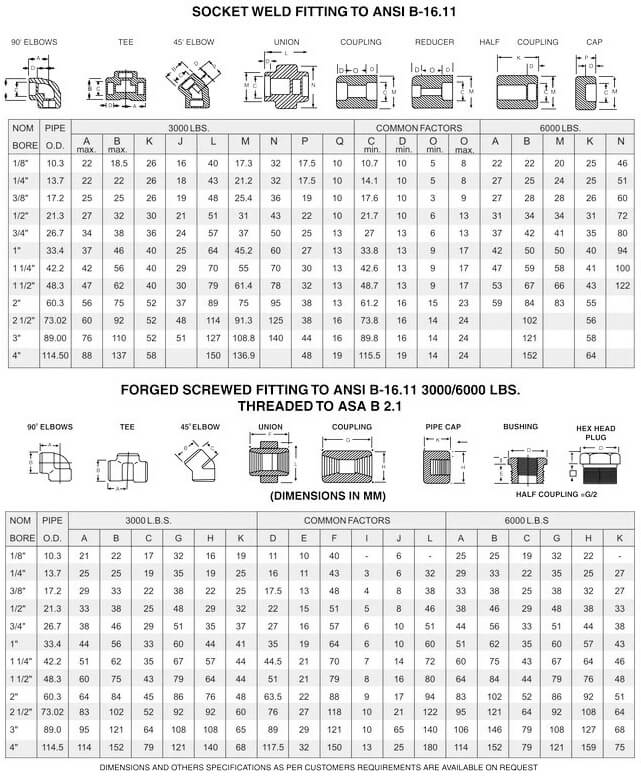

  • SOCKETWELD FITTINGS
    CARBON STEEL FORGED FITTING

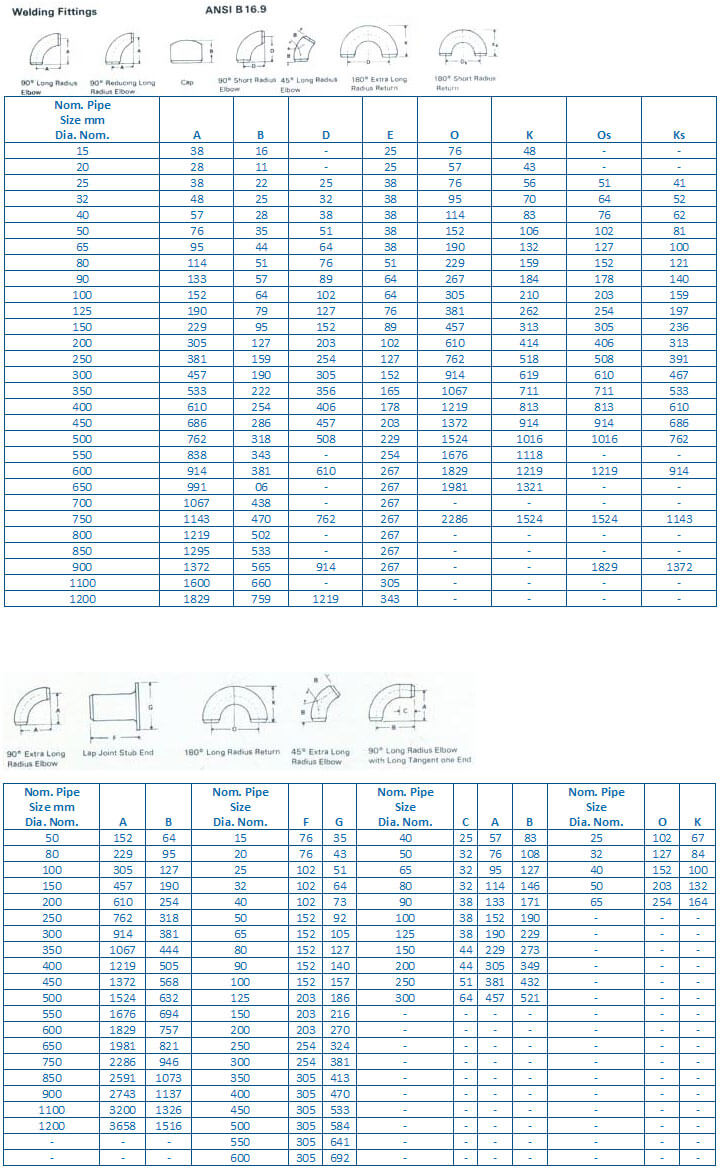

  • ELBOW
    CARBON STEEL FORGED FITTING

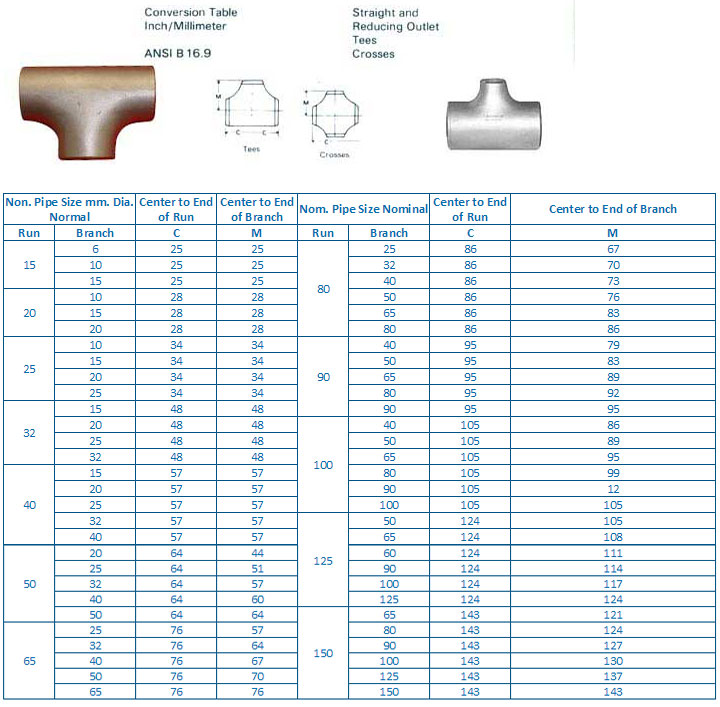

  • TEE
    CARBON STEEL FORGED FITTING

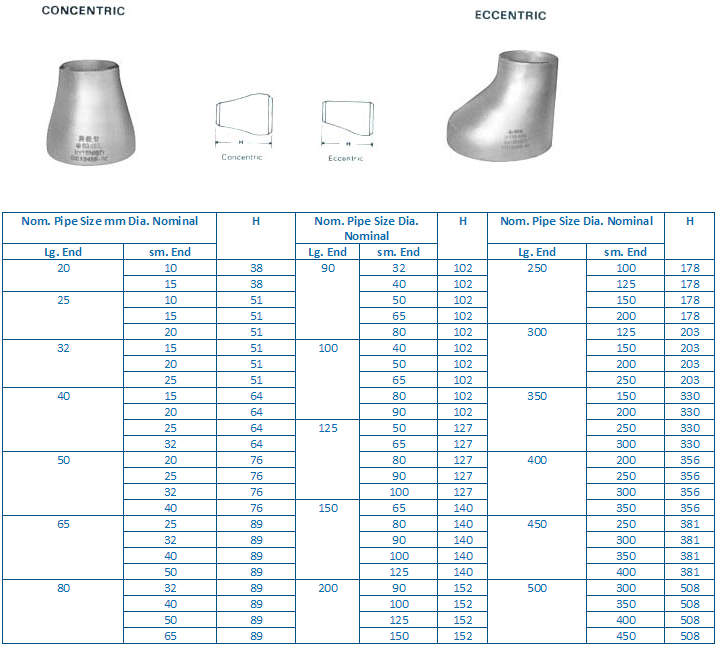

  • REDUCER
    CARBON STEEL FORGED FITTING

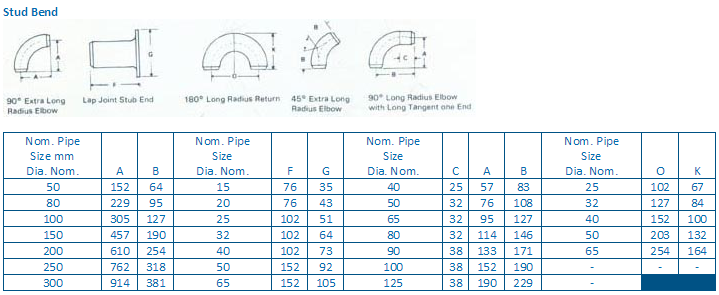

  • STUB END
    CARBON STEEL FORGED FITTING

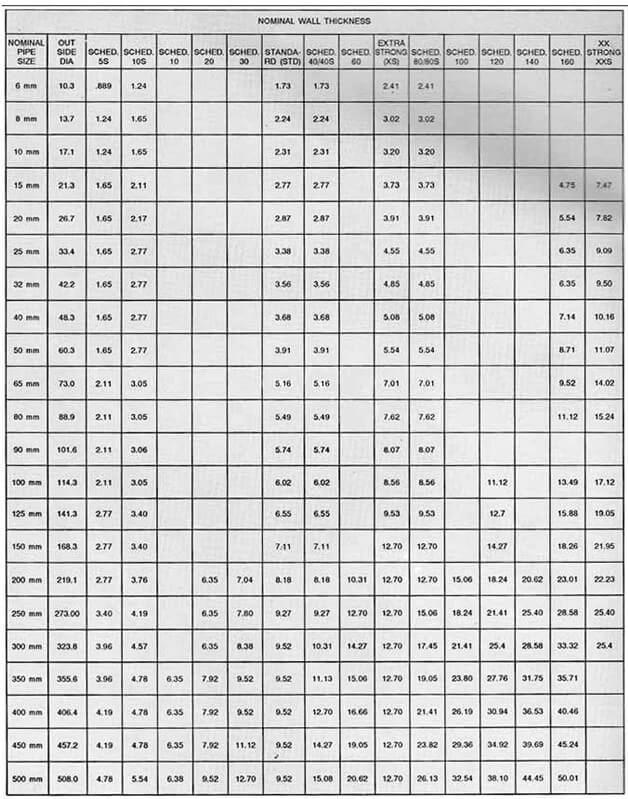

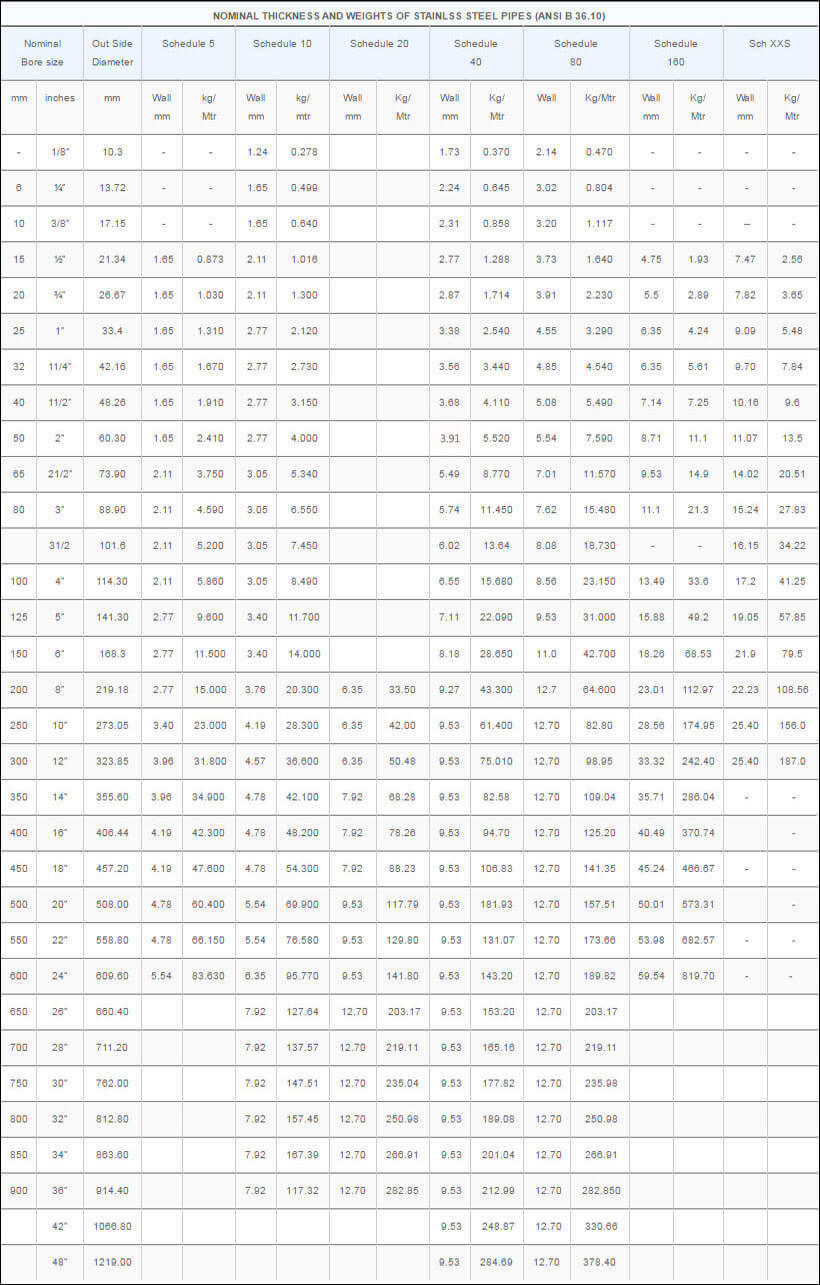

  • STAINLESS STEEL PIPE

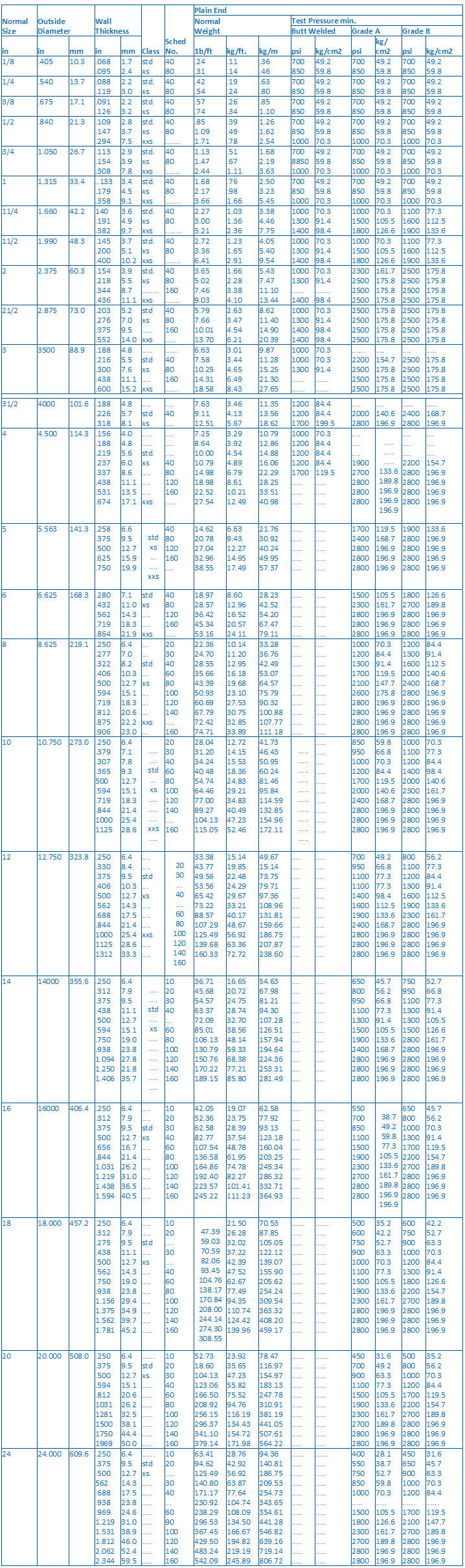

  • SEAMLESS PIPE
    Size 1/4" NB TO 24" NB IN Sch 40,60,80,120,160 & XXS. (Carbon steel)
    Carbon Steel:
    Specifications
    ASTM A 53, A 106, A 179, API 5L/5LX, BSS, 3059, 182, 806, 3601, 3602, DIN 17175. 2448 etc.
    CARBON STEEL FORGED FITTING

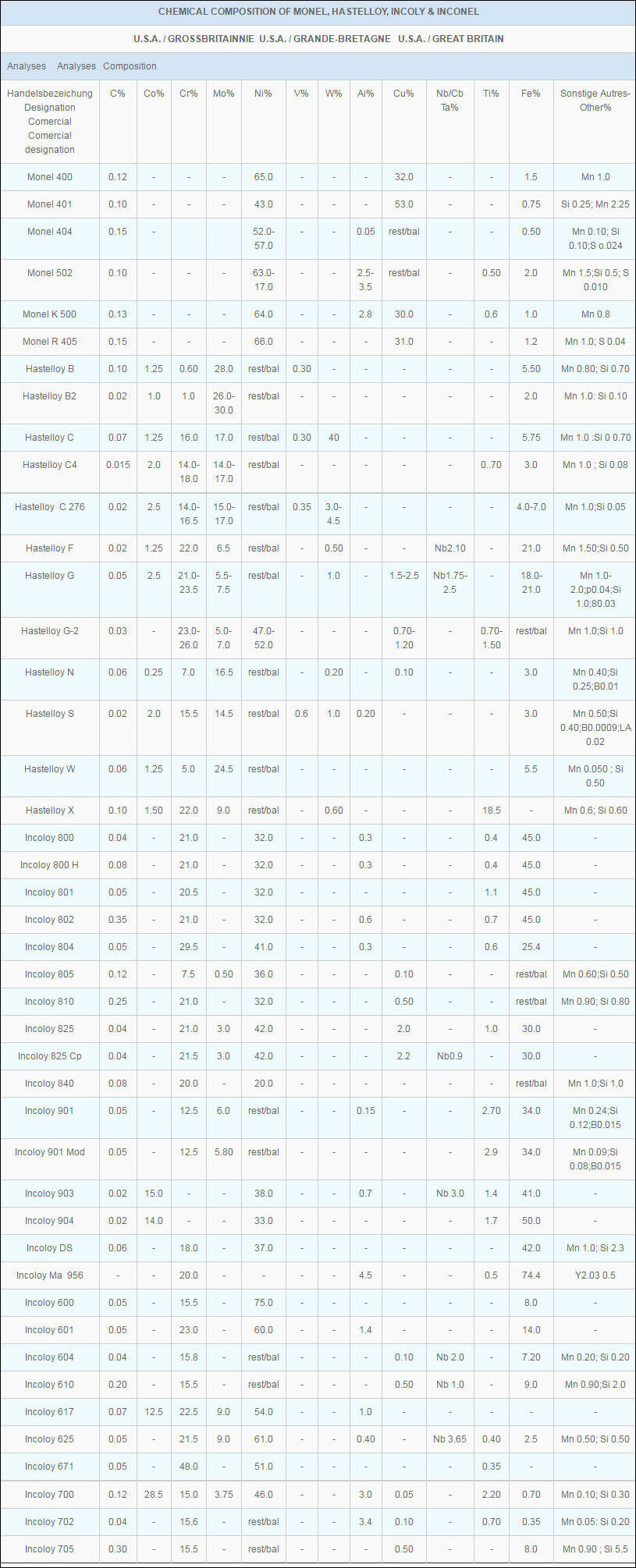

Non-Ferrous Metal


CARBON STEEL FORGED FITTING

Weight Formula


  • 1. Weight of Stainless Steel Pipes & Tubes
    OD(mm)-W.T. (mm) x W.T.(mm)x0.02466=Kg.per Mtr.

  • 2. Sheet Width Required for rolled and welded pipes
    O.D.(mm) - THK(mm) x 3.14=SheetWidth

  • 3. Weight of Stainless Steel Sheets
    Length (mtr.) x Wdth(mtr.) x Thk(mm)x8=Kg Per Sheet

  • 4. Weight of Stainless Steel Circle & Blanks
    OD(mm) x OD>(mm) x Thk(mm)/160/1000=Kg Per Pcs.

  • 5. Weight of Stainless Steel Rounds
    Dia.(mm)xdia.(mm) x 0.00623=PerMtr.

  • 6. Weight of Stainless Steel Hexagonal Rods
    Dia.(mm)xDia.(mm) x 0.00679=PerMtr.

  • 7. Weight of Stainless Steel Square Bars
    Dia.(mm)xDia.(mm) x 0.00787=PerMtr.

  • 8. Weight of Carbon Steel Pipes & Tubes
    Dia.(mm)-W.T.(mm) XW.T.(mm) x 0.02466=Kg.PerMtr.

  • 9. Weight of Carbon Steel Sheets & Plates
    Length (mtr.) x Wdth(mtr.) x Thk(mm) x 7.85=Kg Per Sheet

  • 10. Weight of Copper Pipes
    OD(mm)-W.T. (mm) X W.T.(mm) x 0.0256=Kg.per Mtr.

  • 11. Weight of Lead Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0345=per Mtr.

  • 12. Weight of Lead Sheets(appro.)
    Length (mtr.) XWidth(mtr.) XThk(mm) x 11.2=Kg Per Sheet

  • 13. Weight of Alluminium Pipes(appro.)
    OD(mm)-W.T. (mm) XW.T.(mm) x 0.0082=Kg per Mtr.

  • 14. Weight of Alluminium Sheets(appro.)
    Length (mtr.) X Width(mtr.) X Thk(mm) x 2.66=Kg Per Sheet

    Tensile Strength Conversion Table
    1. Kg/mm2 x 9.81 = N/mm2=MPa
    2. PSi x 0.0007 = Kg/mm2
    3. KSi x 1000 = PSi
    4. Kg/mm2 x 1.422 = KSi
